Cemented Tungsten Carbide Abrasive Waterjet Nozzles
The main factor for the Carbide Abrasive Waterjet Nozzles is the high wear-resistance under so high pressure, traditional Wc-cobalt grade can not withstand so harsh working condition at all. We developed the almost no-binder materials through the unique method base on years of Researching and Experiment of our Engineers, to distinguish it from the traditional Carbide Grades, it is really a great breakthrough. We have done a lot and invest a lot.
Thanks to the hard working of our engineers, we are able to provide the market so excellent materials at so competitive price. Rydmet Carbide Nozzles are getting more and more popular among our clients worldwide in the waterjet industry.
Super Wear-resistance, means long tool life, less tool consumption, high efficiency, Rydmet is always there to focus on your expectation.

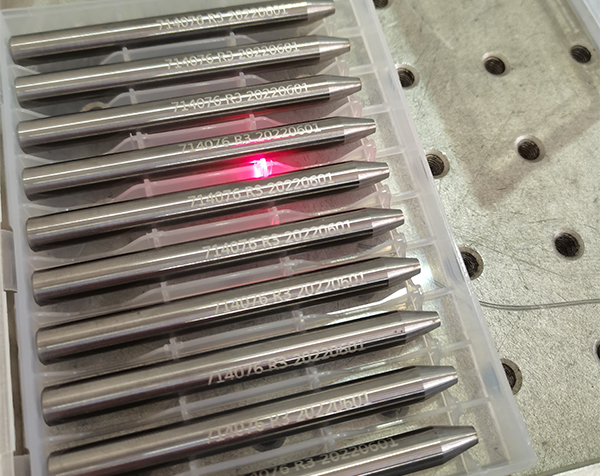

T.C Waterjet cutting Nozzles
| O.D | I.D | Length | |||
| mm | (inch) | mm | Inch | mm | inch |
| 6 | 0.236 | 0.76 | 0.03 | 76.2 | 3 |
| 6 | 0.236 | 0.8 | 1/32 | 70 | 2-3/4 |
| 6 | 0.236 | 1.02 | 0.04 | 70 | 2-3/4 |
| 6 | 0.236 | 1.02 | 0.04 | 76.2 | 3 |
| 6.35 | 1/4 | 0.5 | 0.02 | 76.2 | 3 |
| 6.35 | 1/4 | 0.6 | 0.023 | 76.2 | 3 |
| 6.35 | 1/4 | 0.76 | 0.03 | 50.8 | 2 |
| 6.35 | 1/4 | 0.76 | 0.03 | 76.2 | 3 |
| 6.35 | 1/4 | 1.02 | 0.04 | 50.8 | 2 |
| 6.35 | 1/4 | 1.02 | 0.04 | 76.2 | 3 |
| 6.35 | 1/4 | 1.14 | 0.045 | 76.2 | 3 |
| 6.35 | 1/4 | 1.2 | 3/64 | 76.2 | 3 |
| 6.35 | 1/4 | 1.27 | 0.05 | 76.2 | 3 |
| 6.7 | 0.264 | 0.7 | 0.028 | 70 | 2-3/4 |
| 6.7 | 0.264 | 1.0 | 0.039 | 76.2 | 2-3/4 |
| 7.14 | 9/32 | 0.5 | 0.02 | 76.2 | 3 |
| 7.14 | 9/32 | 0.76 | 0.03 | 76.2 | 3 |
| 7.14 | 9/32 | 1.02 | 0.03 | 101.6 | 4 |
| 7.14 | 9/32 | 1.02 | 0.04 | 76.2 | 3 |
| 7.14 | 9/32 | 1.27 | 0.05 | 101.6 | 4 |
| 7.62 | 0.03 | 1.302 | 0.04 | 76.2 | 3 |
| 7.62 | 0.03 | 1.27 | 0.05 | 76.2 | 3 |
| 7.97 | 0.313 | 1.07 | 0.042 | 101.6 | 4 |
| 7.97 | 0.313 | 0.5 | 0.02 | 101.6 | 4 |
| 7.97 | 0.313 | 0.76 | 0.03 | 101.6 | 4 |
| 9.43 | 0.371 | 0.5 | 0.02 | 76.2 | 3 |
| 9.43 | 0.371 | 0.76 | 0.03 | 76.2 | 3 |
| 9.43 | 0.371 | 1.02 | 0.04 | 76.2 | 3 |
Facing the high pressure and wear-resistance of the waterjet Nozzles, almost all the trantional fine grain size or micron grain size of Carbide is not workable too weak at all, in order to meet the market demand and solve the wear-resistance problem of the waterjet Nozzle, after long time trial and test of the experiments, we have developed and bulk produced the Carbiode Nozzles with Low-cobalt ( less than 1%) content and nano grain Size, which has received a great approvement.
The Low Cobalt content and Nano Grain Size ( about 0.2 micron) can make this materials be of very excellent wear-resistance for this appplication, the hardness can reach 2600 Hv30. the detailed information for this Grade is RDL01
| Grade | Cobalt % | Density G/cc | HV3 | HRA | TRS Mpa | Grain Size um |
| RDL01 | ≤1 | 15.12~15.45 | 2600 | 97 | 1500 | 0.15 |
Characters: low-cobalt & nana grain size, for high-resistance materials specially, it is ideal materials for Waterjet Nozzle, the tool life can be more than 130 hours ( for cutting steel).
