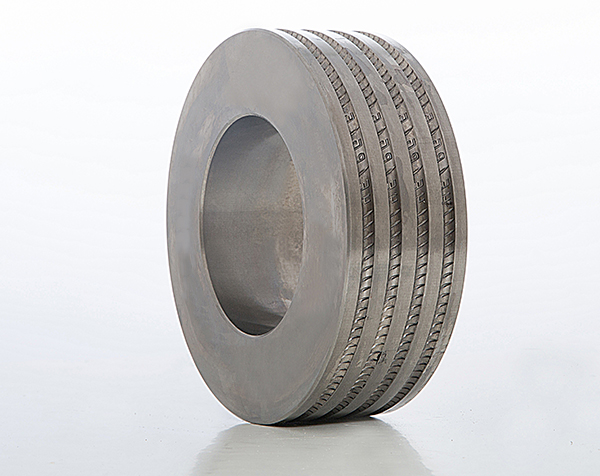

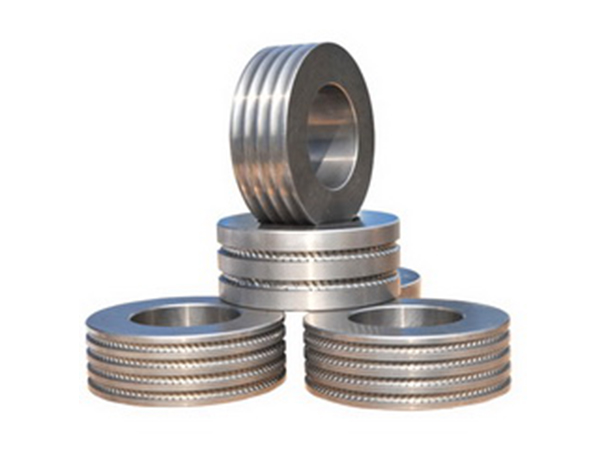

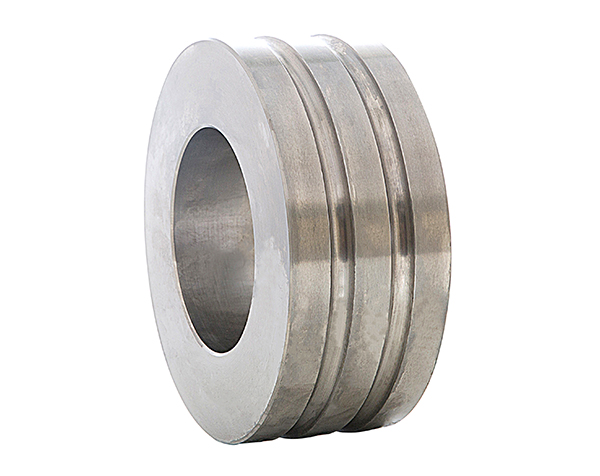

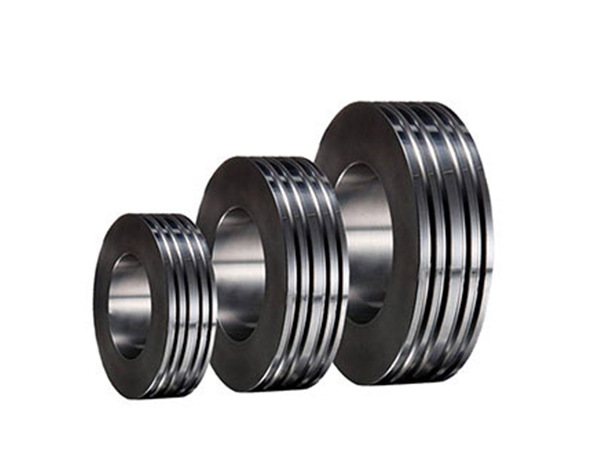

Carbide Rolls With Grooves
Carbide Rolls With Grooves (also known as tungsten carbide roll ring) possesses good thermal conduction property. Compared with pther materials, it is much better in terms of heat-resistance, wear-resistance and strength.
Carbide Rolls With Grooves
| Application | Roll Size (mm×mm) | Groove Dimension | |||
| Product | Mill | Width(mm) | Depth(mm) | Radius(mm) | |
| Wire Rod | Intermediate | 390×130 | 47 | 9 | 37 |
| 29 | 12 | 14 | |||
| 330×95 | 37 | 7 | 29 | ||
| 23 | 9 | 11 | |||
| Finishing | 210.5×72 | 24 | 5 | 17 | |
| 14 | 6 | 7 | |||
| 158.75×57.3 | 12 | 2 | 10 | ||
| 6 | 2 | 3 | |||
| Round Bar | Finishing(F1-F2) | 370×40 | 25 | 2 | 13 |
| 21 | 2 | 12 | |||
| 18 | 2 | 11 | |||
| 15 | 3 | 10 | |||
| 14 | 3 | 9 | |||
