Cut-to-Length Carbide Rods (Metric)

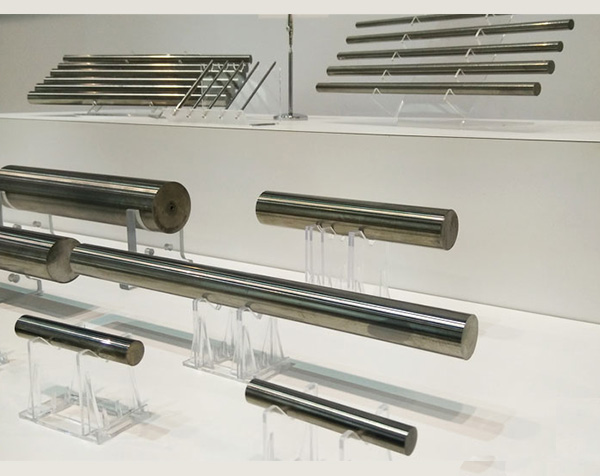

The Tungsten Carbide Rods, Blanks are made by Extrusion from the highest purity of Materials and Sinter Hiped.

Be of very high quality and tool peroformances, the grade for Cutting tools are usually in Sub-micron Grain and Ultra-fine Grain. As demand,the other grade can be custom-made.



  • Product Description
  • Meaning of Type

    The Carbide Rods are ideal materials for the Solid rotoary Cutting tools, like Solid Carbide Endmill, Drills, Remaers, Taps.etc.

    TheStandard grade available as follow:

    The Grade of the Tungsten Carbide Rods
    Properties of GradeRD10FRD10UFRD12UFRD06UF
    Co%1010126
    WC incl. Doping%90908894
    Densityg/cm314.4514.4514.114.9
    Vickers Hardness HV30kg/mm21580179016901890
    Rockwell Hardness HRAISO373891.893>92.593.5
    TRSN/mm23800400040003900
    PorosityA< 02< 02< 02< 02
    B0000
    C0000
    WC Grain Sizeμm0.80.50.4-0.50.5


    H6 ground Carbide Rods Standard, Metric (mm) Production No Dia mm Length mm Type (Dia.) mm (L) mm 0-2.35-445-G 2.35 44.5 0-6.5-074-G 6.5 74 0-2.35-450-G 2.35 45 0-7.0-060-G 7 60 0-3.0-038-G 3.0 38 0-7.0-080-G 7 80 0-3.0-046-G 3.0 46 0-7.5-074-G

    Production NoDia
     mm
    Length
    mm

    Type(Dia.)
    mm
    (L)
    mm
    0-2.35-445-G2.3544.50-6.5-074-G6.574
    0-2.35-450-G2.35450-7.0-060-G760
    0-3.0-038-G3.0380-7.0-080-G780
    0-3.0-046-G3.0460-7.5-074-G7.574
    0-3.0-050-G3.0500-8.0-060-G860
    0-3.0-052-G3.0520-8.0-064-G864
    0-3.0-061-G3.0610-8.0-075-G875
    0-3.0-065-G3.0650-8.0-080-G880
    0-3.0-070-G3.0700-8.5-079-G8.579
    0-3.0-070-G3.0750-9.0-067-G967
    0-3.0-070-G3.01000-9.0-084-G984
    0-3.5-055-G3.5550-9.5-084-G9.584
    0-3.5-070-G3.5700-10-066-G1066
    0-4.0-070-G4.0400-10-070-G1070
    0-4.0-051-G4.0510-10-073-G1073
    0-4.0-055-G4.0550-10-075-G1075
    0-4.0-058-G4.0580-10-090-G1090
    0-4.0-075-G4.0750-10.5-089-G10.589
    0-4.0-080-G4.0800-10.5-095-G10.595
    0-4.5-058-G4.5580-11-095-G1195
    0-4.5-062-G4.5620-12-075-G1275
    0-4.5-080-G4.5800-14-075-G1475
    0-4.5-086-G4.5860-14-082-G1482
    0-5.0-050-G5.0500-14-085-G1485
    0-5.0-062-G5.0620-15-092-G1592
    0-5.0-066-G5.0660-16-082-G1682
    0-5.0-075-G5.0750-16-089-G1689
    0-5.0-086-G5860-16-093-G1693
    0-5.0-093-G5930-18-084-G1884
    0-5.5-066-G5.5660-18-093-G1893
    0-5.5-093-G5.5930-18-130-G18130
    0-6.0-050-G6500-20-093-G2093
    0-6.0-054-G6540-20-100-G20100
    0-6.0-060-G6600-20-105-G20105
    0-6.0-066-G6660-20-130-G20130
    0-6.0-075-G6750-25-074-G2574
    0-6.0-080-G6800-25-125-G25125
    0-6.0-093-G6930-25-150-G25150
    0-6.5-070-G6.5700-25-170-G25170

    If the sizes is not listed here, please let us know your requirement in details, we can make the Rods as per your request.
